S5-VERSABRACKET-47

Description



This product is in the process of transitioning to the SKU: S5-SOLARFOOT

***BayWa Closeout Policy Applies To This Item***

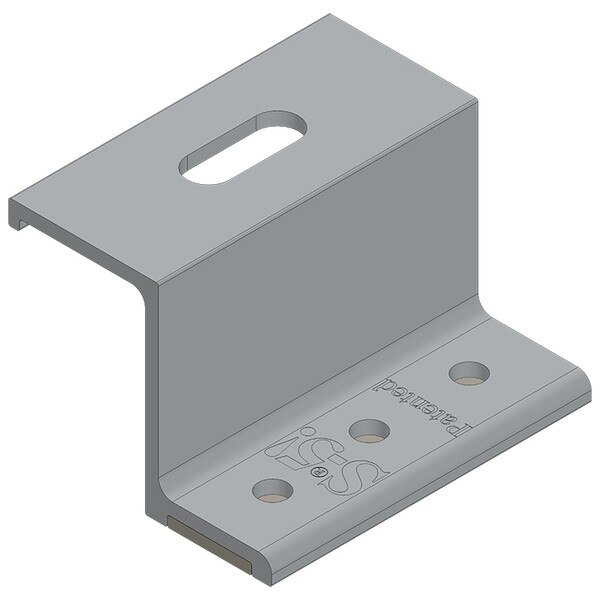

S-5! VersaBracket-47 unit, fasteners sold separately. S5-VERSABRACKET-47 should never be used for PV installation with an LFoot. It can be used with bottom mount rail, where an LFoot is not required. VersaBracket can be used with the S-5! PV kit when appropriate. Typically S5-SOLARFOOT is the best option for rail mount on exposed fastened roofs . Call S-5! support at 888-825-3432 with any questions.

For use with most trapezoidal, exposed-fastener metal roofs. Attaches with up to 3 screws into supporting roof members, includes factory-applied butyl sealant, in a reservoir to protect seal from UV exposure. (Screws not included, purchase separately as appropriate for roof material.) Dimensions: 2.88"L x 2.37W x 1.87"H

  • Manufacturer Part Number: VersaBracket-47

  • Manufacturer Warranty: 50 Years

  • Performance Warranty: Lifetime Warranty

  • Shipping Weight: .16 lb

  • Shipping Dimensions: 2.37 x 2.88 x 1.86 in

  • Case Qty: 100
